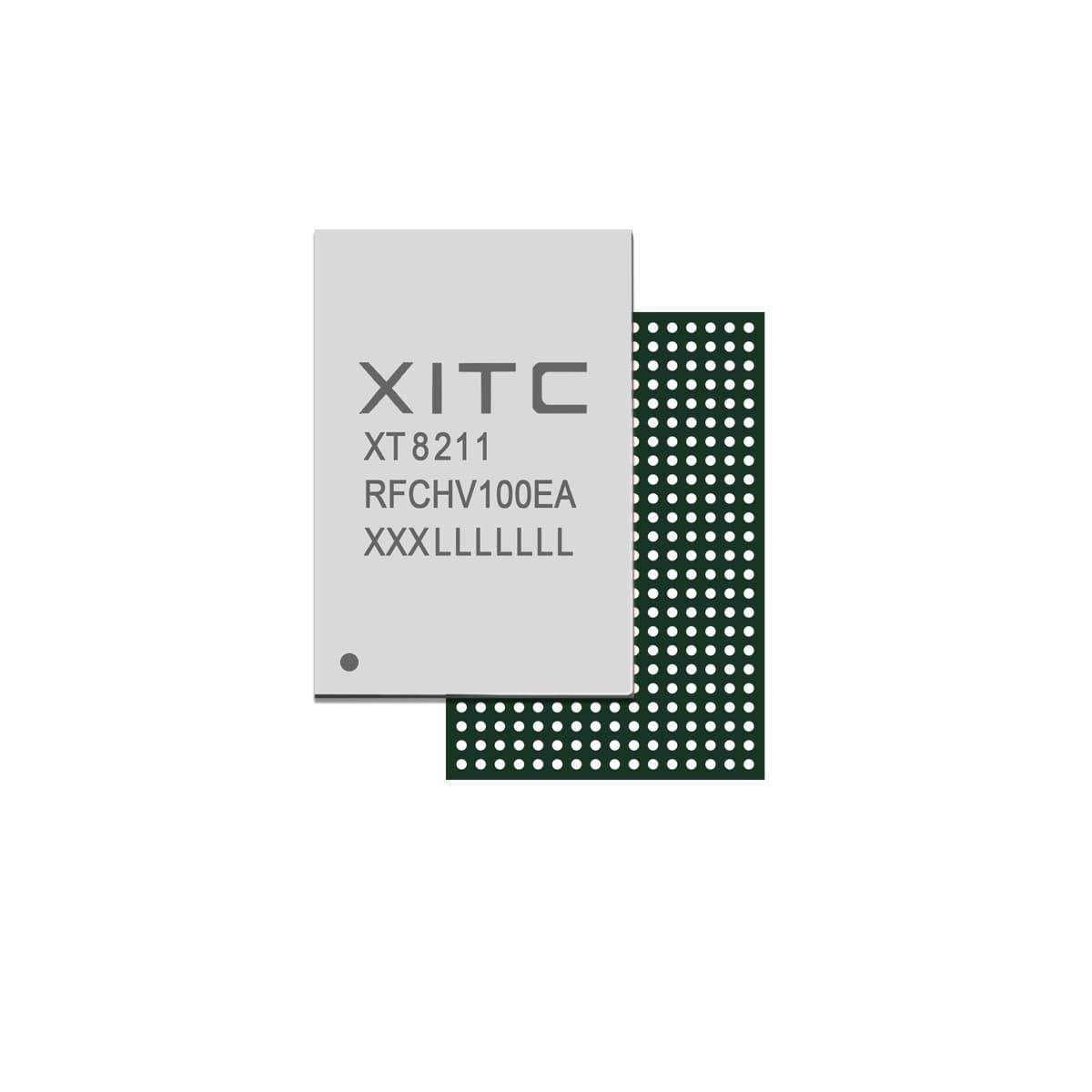

XT8211 XITCORP SSD Controller In Stock
PCIe 4.0 x4 NVMe 1.4 SSD controller with RISC-V multi-core CPU, 3D TLC/QLC up to 4TB, 5,000/5,000 MB/s sequential, 600K/600K IOPS, AES-256 and TCG Opal 2.0, for mainstream Gen4 client SSDs.
- Manufacturer
- XITCORP
- Package
- —
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- SSD Controller
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
Key Features
- PCIe 4.0 x4 with NVMe 1.4
- Up to 5,000/5,000 MB/s and 600K/600K IOPS
- 3D TLC/QLC NAND up to 4TB
- AES-256 and TCG Opal 2.0 encryption
- LDPC, SRAM ECC, RAID, E2E protection
- RISC-V multi-core CPU
Applications
The XT8211 targets mainstream client and commercial Gen4 M.2 SSDs for desktops, notebooks and workstations. It balances Gen4 performance with cost for volume PC and Xinchuang platform storage; XITCORP's EP-series desktop NVMe drives sit in this class.
Specifications
| Processor | RISC-V multi-core CPU |
| Host Interface | PCIe 4.0 x4, NVMe 1.4 |
| NAND Support | 3D TLC/QLC |
| Max Capacity | 4 TB |
| Sequential Read/Write | Up to 5,000/5,000 MB/s |
| Random Read/Write | Up to 600K/600K IOPS |
| Encryption | AES-256, TCG Opal 2.0 |
| Data Protection & ECC | LDPC, SRAM ECC, RAID, E2E |
Additional Information
| Product Family | PCIe Controller |
Alternate & Equivalent Parts
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What interface and speed does the XT8211 SSD controller reach?
The XT8211 is a PCIe 4.0 x4 NVMe 1.4 controller reaching 5,000 MB/s sequential read and write with 600K/600K random read/write IOPS, built on a RISC-V multi-core CPU.
What NAND flash and memory capacity does the XT8211 support?
It supports 3D TLC and QLC NAND flash up to 4 TB total capacity, protected by LDPC error correction, SRAM ECC, RAID and end-to-end data path protection.
What encryption is available for self-encrypting drive designs?
The XT8211 implements AES-256 hardware encryption with TCG Opal 2.0 support, enabling standard self-encrypting client SSDs without the national-algorithm certification of the enterprise XT8210.
How does the XT8211 compare with the similar XT8210?
The XT8211 is the mainstream Gen4 part — 5 GB/s, 600K IOPS and 4 TB with AES-256/Opal — while the XT8210 is the enterprise flagship with 7/6 GB/s, 1,000K IOPS, 16 TB support and certified SM2/3/4 encryption.
