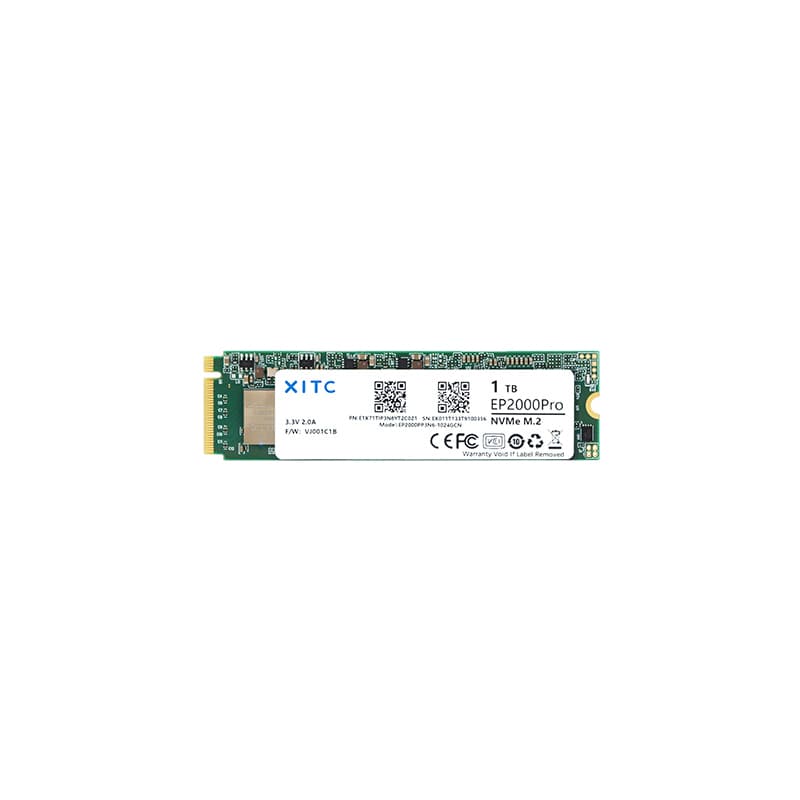

EP2000 PRO XITCORP Solid State Drive (M.2 2280 NVMe) In Stock
High-performance M.2 2280 NVMe SSD, PCIe 3.0 x4 NVMe 1.4, up to 2TB 3D TLC, 3,500/3,400 MB/s and 570K IOPS, client and enterprise-OP variants up to 4,368TB TBW, for desktops and servers.
- Manufacturer
- XITCORP
- Package
- M.2 2280 NVMe
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- Solid State Drive
- Temp Range
- 0.0°C to 70.0°C
- RoHS
- Compliant
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
What are the key features of EP2000 PRO?
- Saturates PCIe 3.0 x4 at 3,500 MB/s reads
- NVMe 1.4 in M.2 2280
- Client (256 GB-2 TB) and enterprise OP (240 GB-1.92 TB) variants
- Up to 570K random write IOPS
- Enterprise variants rated >1 DWPD, up to 4,368 TB TBW
- 5-year warranty on enterprise variants
What is EP2000 PRO used for?
The EP2000 Pro spans high-performance desktops, laptops and all-in-one PCs on the client side, and server or storage-array system disks in its enterprise over-provisioned trim, covering data-center, telecom, finance and government deployments.
What are the specifications of EP2000 PRO?
| NAND Flash | 3D TLC |
| Interface | PCIe 3.0 x4, NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity Options | Client: 256 GB / 512 GB / 1 TB / 2 TB; Enterprise OP variants: 240 / 480 / 960 GB / 1.92 TB |
| Sequential Read (max) | 3,500 MB/s |
| Sequential Write (max) | Up to 3,400 MB/s |
| Random Read (max) | Up to 499,000 IOPS |
| Random Write (max) | Up to 570,000 IOPS |
| TBW | Client: 100–800 TB; Enterprise variants: 546–4,368 TB, DWPD >1 |
| UBER | ≤1E-17 |
| MTBF | 1,500,000–2,000,000 hours |
| Power Consumption | Active ≤3.7 W, Idle ≤0.1 W |
| Operating Temperature | 0°C to +70°C (extended -20°C to +70°C option) |
| Storage Temperature | -40°C to +85°C |
| Vibration (non-operating) | 20 G, 80–2,000 Hz |
| Shock (non-operating) | 1,500 G, 0.5 ms, 3 axis |
| Warranty | 5 years (enterprise variants) |
| Certifications | RoHS, WEEE, REACH, CE, FCC |
| OS Compatibility | Windows 7/8.1/10, Linux, Kylin/UOS |
| Package | M.2 2280 NVMe |
Compliance & Regulatory
| RoHS Status | Compliant |
Additional Information
| Product Family | Desktop SSD |
What are equivalent replacements for EP2000 PRO?
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What interface and speed does the EP2000 Pro deliver?
The EP2000 Pro saturates PCIe 3.0 x4 at 3,500 MB/s sequential read with up to 3,400 MB/s write, and reaches 499,000/570,000 random read/write IOPS under NVMe 1.4 in M.2 2280.
What client and enterprise capacities are available to order?
Client trims span 256 GB, 512 GB, 1 TB and 2 TB with 100–800 TB TBW, while enterprise over-provisioned variants of 240/480/960 GB and 1.92 TB reach 546–4,368 TB TBW at over 1 DWPD.
What temperature range and power envelope does it operate in?
Standard operation covers 0°C to +70°C with an extended -20°C option, drawing at most 3.7 W active and 0.1 W idle, with a 1E-17 UBER on enterprise variants.
Which applications suit the EP2000 Pro best?
It spans high-performance desktops, laptops and all-in-one PCs on the client side, and server or storage-array system disks in its enterprise trim for data-center, telecom, finance and government use.
