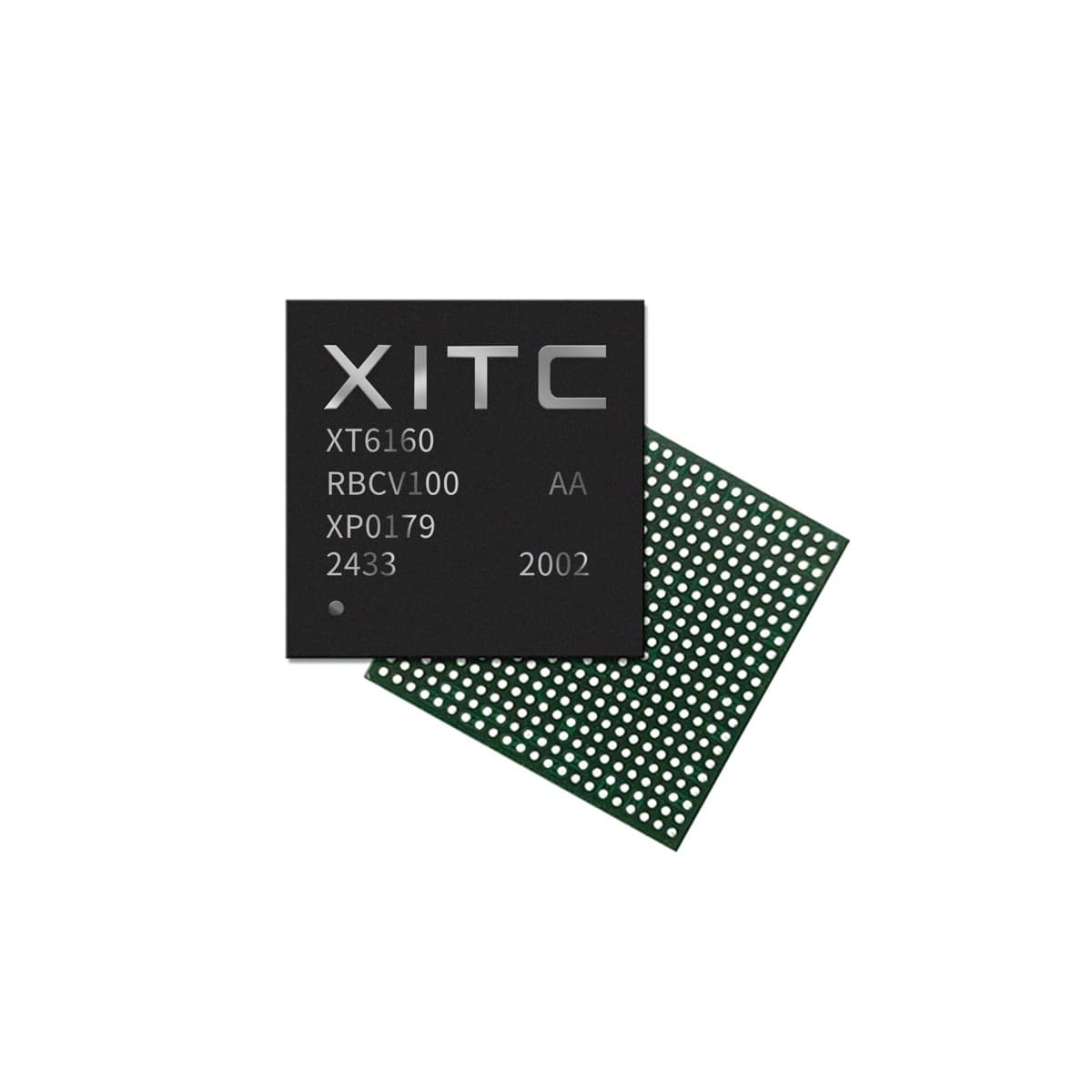

XT6160 XITCORP SSD Controller In Stock
High-capacity SATA III (6Gb/s) SSD controller with RISC-V multi-core CPU, supports 3D TLC/QLC NAND up to 16TB, 565/530 MB/s sequential, 98K/60K IOPS, SM2/3/4 and AES-256 with TCG Opal 2.0.
- Manufacturer
- XITCORP
- Package
- —
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- SSD Controller
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
Key Features
- RISC-V multi-core CPU
- SATA III 6Gb/s interface
- Up to 16TB with 3D TLC/QLC NAND
- Up to 565/530 MB/s sequential, 98K/60K IOPS random
- LDPC, RAID+, SRAM/DRAM ECC, E2E protection
- SM2/3/4, AES-256, TCG Opal 2.0 encryption
Applications
The XT6160 powers XITCORP's high-capacity enterprise SATA SSDs, including the SS6000SE (up to 7.68TB) and the DS6130 industrial pSLC drive. It targets data-center and enterprise-server SATA storage where large capacity and Chinese national encryption standards are required.
Specifications
| Processor | RISC-V multi-core CPU |
| Host Interface | SATA III (6Gb/s) |
| NAND Support | 3D TLC/QLC |
| Max Capacity | 16 TB |
| Sequential Read/Write | Up to 565/530 MB/s |
| Random Read/Write | Up to 98K/60K IOPS |
| Encryption | SM2/3/4, AES-256, TCG Opal 2.0 |
| Data Protection & ECC | LDPC, RAID+, SRAM/DRAM ECC, E2E |
Additional Information
| Product Family | SATA Controller |
Alternate & Equivalent Parts
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What interface, speed and capacity does the XT6160 SSD controller support?
The XT6160 is a SATA III 6Gb/s controller reaching 565 MB/s read, 530 MB/s write and 98K/60K random IOPS, and it addresses up to 16 TB — the highest capacity in XITCORP's SATA controller line.
What error correction and memory protection does the XT6160 include?
It layers LDPC error correction, RAID+ recovery, both SRAM and DRAM ECC, and end-to-end data path protection, with SM2/3/4, AES-256 and TCG Opal 2.0 encryption engines on a RISC-V multi-core CPU.
Which XITCORP SSDs and applications use the XT6160?
The SS6000SE enterprise SATA SSD, which scales to 7.68 TB, and the DS6130 industrial pSLC M.2 module are built on the XT6160, serving data-center, server and rugged datacom applications.
How is the XT6160 different from similar XITCORP SATA controllers?
Against the XT6110 and XT6120, the XT6160 doubles maximum capacity to 16 TB, adds DRAM ECC alongside SRAM ECC, and nudges throughput to 565/530 MB/s, making it the flagship choice for high-capacity enterprise SATA drives.
