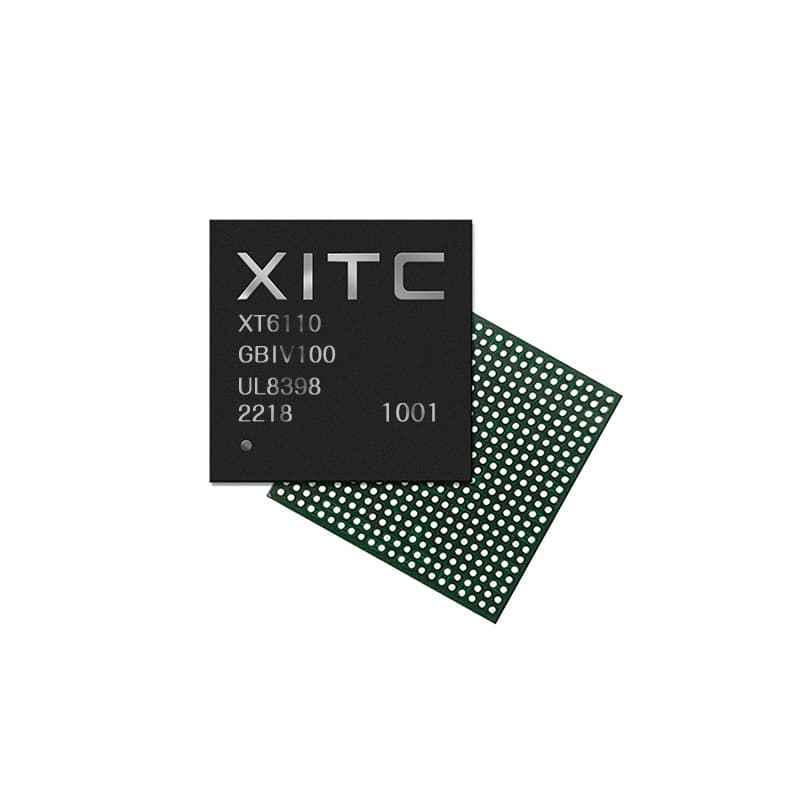

XT6110 XITCORP SSD Controller In Stock
SATA III (6Gb/s) SSD controller with 32-bit MCU, supports 2D SLC/MLC/TLC and 3D TLC/QLC NAND up to 8TB, 560/520 MB/s sequential, SM2/3/4 and AES-256 encryption with TCG Opal 2.0.
- Manufacturer
- XITCORP
- Package
- —
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- SSD Controller
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
Key Features
- SATA III 6Gb/s host interface
- Supports 2D SLC/MLC/TLC and 3D TLC/QLC NAND
- Up to 8TB capacity
- Up to 560/520 MB/s sequential, 95K/85K IOPS random
- SM2/3/4, AES-256, TCG Opal 2.0 encryption
- E2E, PLP, LDPC, RAID+ and RAM ECC data protection
Applications
The XT6110 powers industrial and enterprise SATA SSDs such as XITCORP's DS1000, DS1200 Pro, 310C-Y, 610C-Y and H10C-Y drives. It targets industrial control, rail transit, surveillance and server boot/data drives where domestic (China-designed) silicon and hardware encryption are required.
Specifications
| Processor | Domestic 32-bit microprocessor |
| Host Interface | SATA III (6Gb/s) |
| NAND Support | 2D SLC/MLC/TLC, 3D TLC/QLC |
| Max Capacity | 8 TB |
| Sequential Read/Write | Up to 560/520 MB/s |
| Random Read/Write | Up to 95K/85K IOPS |
| Encryption | SM2/3/4, AES-256, TCG Opal 2.0 |
| Reliability Features | E2E data protection, PLP, LDPC, RAID+, RAM ECC; built-in NANDXtra reliability engine and NANDSafe security engine |
Additional Information
| Product Family | SATA Controller |
Alternate & Equivalent Parts
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What host interface and speed does the XT6110 SSD controller support?
The XT6110 provides a SATA III 6Gb/s host interface and sustains up to 560 MB/s sequential read, 520 MB/s sequential write, and up to 95K/85K random read/write IOPS in a finished SSD design.
Which NAND flash types and maximum memory capacity work with the XT6110?
It manages 2D SLC, MLC and TLC as well as 3D TLC and QLC NAND flash, addressing up to 8 TB of raw capacity in a single SATA SSD design.
What encryption and data protection features are suitable for secure applications?
The controller integrates SM2/SM3/SM4 national algorithms, AES-256 and TCG Opal 2.0, plus E2E path protection, PLP, LDPC, RAID+ and RAM ECC through its NANDXtra reliability and NANDSafe security engines.
Which XITCORP drives use the XT6110, and what designs is it used for?
XITCORP builds its DS1000 and DS1200 Pro industrial SSDs and the 310C-Y, 610C-Y and H10C-Y enterprise SATA drives on the XT6110, targeting industrial control, rail transit, surveillance and server boot storage designs.
