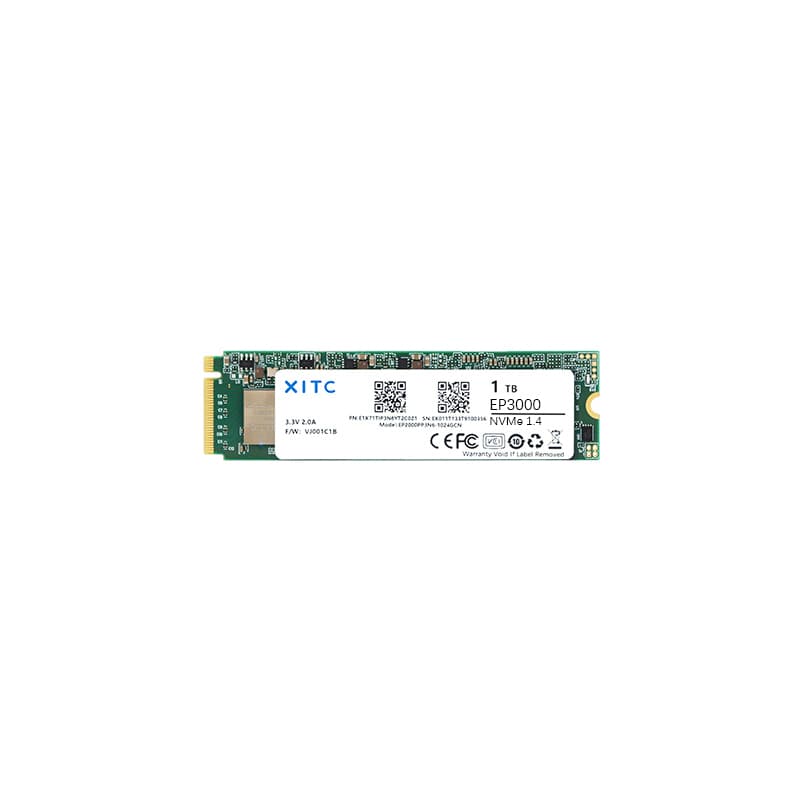

EP3000 XITCORP Solid State Drive (M.2 2280 NVMe) In Stock
Enterprise PCIe 4.0 x4 NVMe 1.4 M.2 2280 SSD, 240GB-1.92TB 3D TLC, up to 5,000/5,000 MB/s and 600K/600K IOPS, TBW up to 4,368TB, MTBF 2M hours, for data-center and server system drives.
- Manufacturer
- XITCORP
- Package
- M.2 2280 NVMe
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- Solid State Drive
- Temp Range
- 0.0°C to 70.0°C
- RoHS
- Compliant
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
What are the key features of EP3000?
- PCIe 4.0 x4 with NVMe 1.4
- Up to 5,000/5,000 MB/s and 600K/600K IOPS
- 240 GB to 1,920 GB 3D TLC
- TBW up to 4,368 TB, UBER ≤1E-17
- MTBF 2 million hours
- RoHS 2.0, WEEE, REACH, CE, FCC certified
What is EP3000 used for?
The EP3000 serves as a Gen4 system disk for enterprise data centers, servers and storage arrays. Windows 10/11, mainstream Linux and Kylin/UOS support let it drop into both commercial and Xinchuang server builds.
What are the specifications of EP3000?
| NAND Flash | 3D TLC |
| Interface | PCIe 4.0 x4, NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity Options | 240 GB / 480 GB / 960 GB / 1,920 GB |
| Sequential Read (max) | Up to 5,000 MB/s |
| Sequential Write (max) | Up to 5,000 MB/s |
| Random Read (max) | Up to 600,000 IOPS |
| Random Write (max) | Up to 600,000 IOPS |
| TBW | 546 TB (240 GB) up to 4,368 TB (1,920 GB) |
| UBER | ≤1E-17 |
| MTBF | 2,000,000 hours |
| Power Consumption | Active <4.1 W, Idle <0.1 W |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Vibration (non-operating) | 20 G, 20–2,000 Hz |
| Shock (non-operating) | 1,500 G, 0.5 ms, 3 axis |
| Certifications | RoHS 2.0, WEEE, REACH, CE, FCC |
| OS Compatibility | Windows 10/11, Linux, Kylin/UOS |
| Package | M.2 2280 NVMe |
Compliance & Regulatory
| RoHS Status | Compliant |
Additional Information
| Product Family | Enterprise SSD |
What are equivalent replacements for EP3000?
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What interface and speed class does the EP3000 reach?
The EP3000 is a PCIe 4.0 x4 NVMe 1.4 drive reaching 5,000 MB/s sequential read and write with 600,000 random IOPS in both directions, saturating Gen4 x4 bandwidth in M.2 2280.
What endurance and reliability figures suit data-center applications?
TBW ranges from 546 TB at 240 GB to 4,368 TB at 1,920 GB with an UBER of 1E-17 and a 2-million-hour MTBF, appropriate for enterprise system-disk duty cycles.
What capacities and power consumption are available?
It ships in 240 GB, 480 GB, 960 GB and 1,920 GB, drawing under 4.1 W active and under 0.1 W idle, with RoHS 2.0, WEEE, REACH, CE and FCC certifications.
Which operating systems and server platforms is the EP3000 compatible with?
The drive supports Windows 10/11, mainstream Linux and Chinese Kylin/UOS operating systems, letting integrators use one Gen4 system disk across commercial and Xinchuang server builds.
