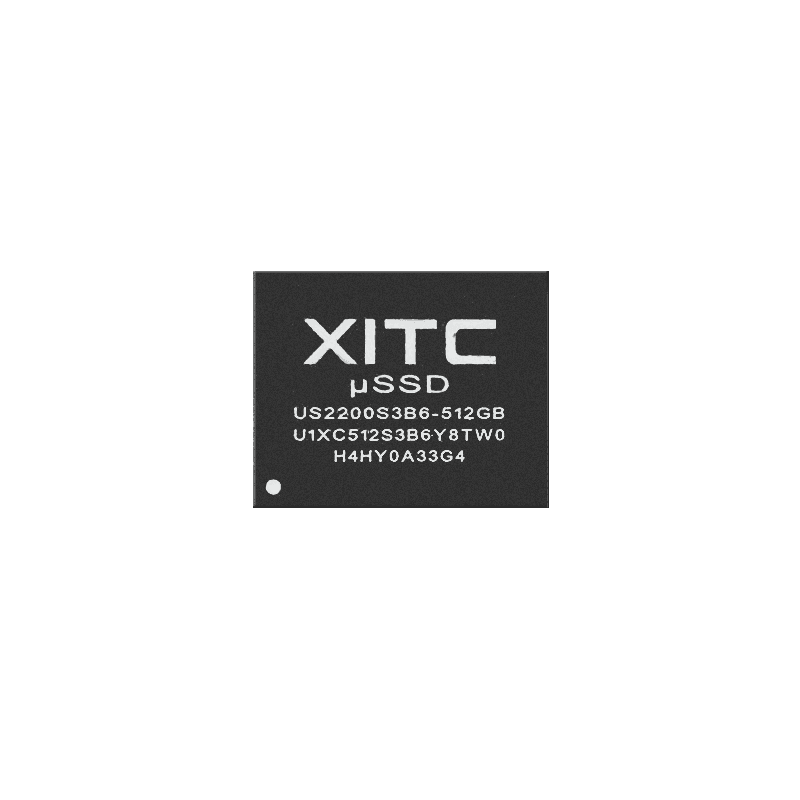

US2200 XITCORP Solid State Drive (BGA 156-ball) In Stock
SATA BGA SSD on XT6121 with YMTC 3D TLC, 64GB-1TB in 156-ball 16x20mm package, -40 to +85C, secure erase and optional destruction, for storage boards, UAVs and vehicle devices.
- Manufacturer
- XITCORP
- Package
- BGA 156-ball
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- Solid State Drive
- Temp Range
- -40.0°C to 85.0°C
- RoHS
- Compliant
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
What are the key features of US2200?
- Single-package BGA SSD, 16 x 20 x 1.4 mm
- 64 GB to 1 TB with YMTC 3D TLC
- -40°C to +85°C operating range
- Up to 500/400 MB/s over SATA 3.0
- Secure erase plus optional soft/hard destruction
- RAID, SRAM ECC, wear leveling, bad-block management
What is US2200 used for?
The US2200 solders directly onto storage boards, embedded boards and ruggedized interface storage cards, and serves UAVs, intelligent vehicle-mounted devices and notebooks — mission applications where a removable drive is impractical.
What are the specifications of US2200?
| Controller | XITCORP XT6121 |
| NAND Flash | YMTC 3D TLC |
| Interface | SATA 3.0 (6Gb/s), backward compatible with 3Gb/s and 1.5Gb/s |
| Package | BGA 156-ball, 16 x 20 x 1.4 mm |
| Capacity Options | 64 GB / 128 GB / 256 GB / 512 GB / 1 TB |
| Sequential Read (max) | Up to 500 MB/s |
| Sequential Write (max) | Up to 400 MB/s |
| Random Read (max) | Up to 38,000 IOPS |
| Random Write (max) | Up to 48,000 IOPS |
| TBW | 75 TB (64 GB) up to 1,000 TB (1 TB) |
| MTBF | 2,000,000 hours |
| Power Consumption | Active ≤1.5 W, Idle ≤0.5 W |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +95°C |
| Vibration (non-operating) | 15 G, 7–2,000 Hz |
| Shock (non-operating) | 1,500 G, 0.5 ms, 3 axis |
| Key Features | RAID, SRAM ECC, secure erase, thermal throttling, online upgrade, smart wear leveling, bad-block management; optional PLP and soft/hard destruction |
| Certifications | RoHS, FCC |
| OS Compatibility | Windows 7/8.1/10, Linux, Kylin/UOS |
| Package | BGA 156-ball |
Compliance & Regulatory
| RoHS Status | Compliant |
Additional Information
| Product Family | Embedded Storage |
What are equivalent replacements for US2200?
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What is a BGA SSD and why design in the US2200?
The US2200 packs a complete SATA SSD — XT6121 controller plus YMTC 3D TLC NAND — into one solder-down 156-ball BGA of 16 x 20 x 1.4 mm, saving board space and improving shock immunity over socketed drives.
What capacities, speed and interface does the US2200 provide?
It spans 64 GB to 1 TB over SATA 3.0 6Gb/s, reaching up to 500 MB/s read and 400 MB/s write with random performance up to 38,000/48,000 IOPS.
What temperature range and security features suit rugged applications?
It operates from -40°C to +85°C with secure erase standard and optional power-loss protection and soft/hard destruction, plus RAID, SRAM ECC, wear leveling and bad-block management.
Where is the US2200 typically soldered in?
It mounts directly onto storage boards, embedded boards and ruggedized interface cards, serving UAVs, intelligent vehicle devices and notebooks where removable drives are impractical.
