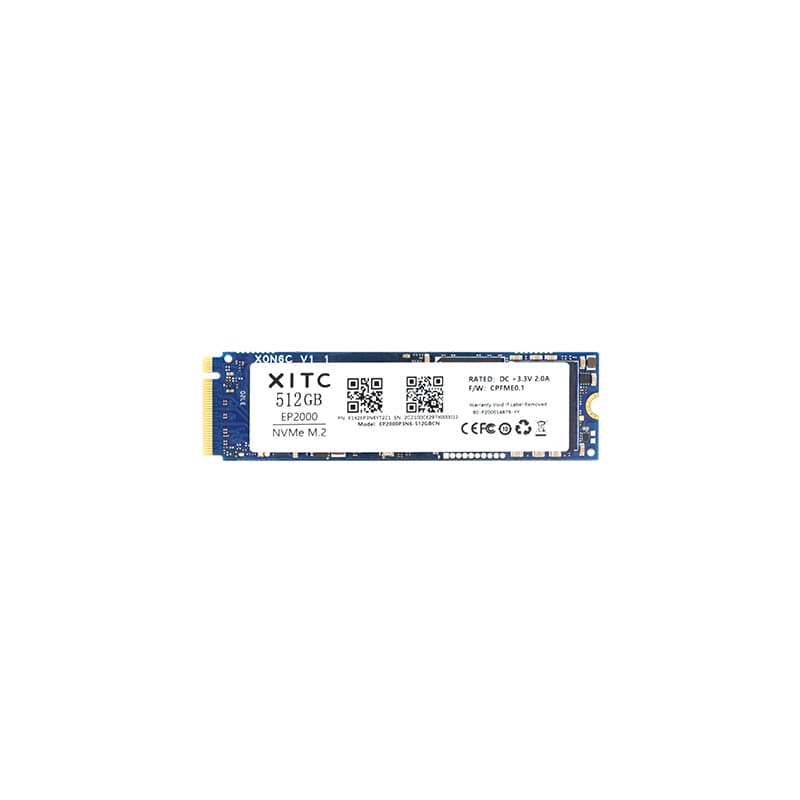

EP2000 XITCORP Solid State Drive (M.2 2280 NVMe) In Stock
Desktop M.2 2280 NVMe SSD, PCIe 3.0 x4 NVMe 1.3, 256GB-1TB YMTC 3D TLC, up to 2,470/2,050 MB/s and 429K IOPS, TBW up to 800TB, for desktop and notebook PCs.
- Manufacturer
- XITCORP
- Package
- M.2 2280 NVMe
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- Solid State Drive
- Temp Range
- 0.0°C to 70.0°C
- RoHS
- Compliant
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
Key Features
- PCIe 3.0 x4 with NVMe 1.3 in M.2 2280
- YMTC 3D TLC NAND, 256 GB to 1 TB
- Up to 2,470/2,050 MB/s sequential
- Up to 429K random write IOPS
- TBW 200–800 TB, MTBF 1.5M hours
- RoHS, WEEE, REACH, CE certified
Applications
The EP2000 targets desktop PCs, notebooks and all-in-one machines, including Xinchuang client platforms running Kylin or UOS. It is a mainstream Gen3 upgrade drive for OEM and system-integrator builds.
Specifications
| NAND Flash | YMTC 3D TLC |
| Interface | PCIe 3.0 x4, NVMe 1.3 |
| Form Factor | M.2 2280 |
| Capacity Options | 256 GB / 512 GB / 1 TB |
| Sequential Read (max) | Up to 2,470 MB/s |
| Sequential Write (max) | Up to 2,050 MB/s |
| Random Read (max) | Up to 275,900 IOPS |
| Random Write (max) | Up to 429,200 IOPS |
| TBW | 200 TB (256 GB) / 400 TB (512 GB) / 800 TB (1 TB) |
| MTBF | 1,500,000 hours |
| Power Consumption | Active ≤2.8 W, Idle ≤0.5 W |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Vibration (non-operating) | 20 G, 80–2,000 Hz |
| Shock (non-operating) | 1,500 G, 0.5 ms, 3 axis |
| Certifications | RoHS, WEEE, REACH, CE |
| OS Compatibility | Windows 7/8.1/10, Linux, Kylin/UOS |
| Package | M.2 2280 NVMe |
Compliance & Regulatory
| RoHS Status | Compliant |
Additional Information
| Product Family | Desktop SSD |
Alternate & Equivalent Parts
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What interface and speed does the EP2000 reach?
The EP2000 runs PCIe 3.0 x4 with NVMe 1.3, reaching up to 2,470 MB/s sequential read, 2,050 MB/s sequential write, and 275,900/429,200 random read/write IOPS in M.2 2280.
What capacities and endurance are available to order?
It comes in 256 GB with 200 TB TBW, 512 GB with 400 TB TBW and 1 TB with 800 TB TBW, using YMTC 3D TLC NAND and a 1.5-million-hour MTBF rating.
What power does it draw and what temperature range applies?
Active power stays at or below 2.8 W and idle at or below 0.5 W, across a 0°C to +70°C operating range and -40°C to +85°C storage range.
Which PCs and applications is the EP2000 suitable for?
It targets desktop PCs, notebooks and all-in-one machines — including Xinchuang client platforms on Kylin or UOS — as a mainstream Gen3 M.2 upgrade or OEM system drive.
