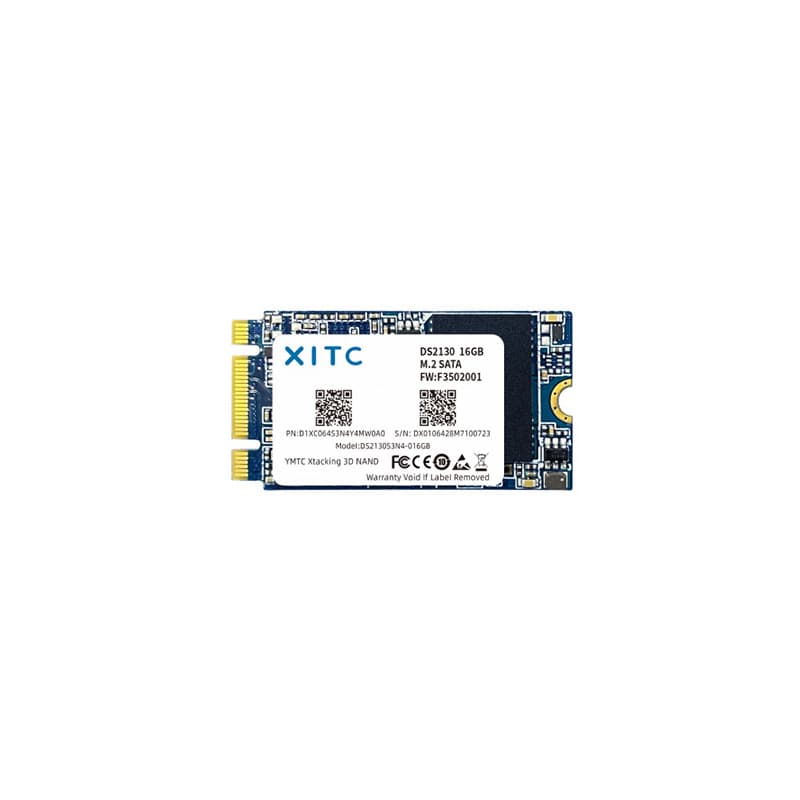

DS2130 XITCORP Solid State Drive (mSATA / M.2 2242 SATA) In Stock
Wide-temperature pSLC industrial SATA SSD on XT6121, 4-32GB in mSATA/M.2 2242, TBW up to 800TB, sub-1W active power, anti-sulfuration, for network security appliances, base stations and gateways.
- Manufacturer
- XITCORP
- Package
- mSATA / M.2 2242 SATA
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- Solid State Drive
- Price
- From $10.8600(MOQ 500)
- Temp Range
- -40.0°C to 85.0°C
- RoHS
- Compliant
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
Key Features
- pSLC mode for 360–800 TB TBW at small capacities
- -40°C to +85°C operating range
- mSATA and M.2 2242, 4 GB to 32 GB
- Under 1 W active power
- Anti-sulfuration and edge-fill protection
- RAID, SRAM ECC, 2K LDPC, PLP
Applications
The DS2130 is built for boot and log storage in network security appliances, base stations, industrial switches, gateway routers and industrial network isolation devices — always-on datacom equipment in harsh or sulfur-rich environments.
Specifications
| Controller | XITCORP XT6121 |
| NAND Flash | YMTC 3D TLC in pSLC mode |
| Interface | SATA 3.0 (6Gb/s), backward compatible with 3Gb/s and 1.5Gb/s |
| Form Factor | mSATA; M.2 2242 |
| Capacity Options | 4 GB / 8 GB / 16 GB / 32 GB |
| Sequential Read (max) | Up to 530 MB/s |
| Sequential Write (max) | Up to 370 MB/s |
| Random Read (max) | Up to 35,500 IOPS |
| Random Write (max) | Up to 50,200 IOPS |
| TBW | 360 TB (4 GB) up to 800 TB (32 GB) |
| MTBF | 2,000,000 hours |
| Power Consumption | Active <1 W, Idle <0.6 W |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +95°C |
| Vibration (non-operating) | 20 G, 7–2,000 Hz |
| Shock (non-operating) | 1,500 G at 0.5 ms, 3 axis |
| Key Features | RAID, SRAM ECC, 2K LDPC, PLP; anti-sulfuration and edge-fill; data recovery, soft destruction, ruggedization (customizable) |
| Certifications | RoHS, WEEE, REACH, CE, FCC, UKCA-EMC |
| OS Compatibility | Windows 7/8.1/10, Linux, Kylin/UOS |
| Package | mSATA / M.2 2242 SATA |
Compliance & Regulatory
| RoHS Status | Compliant |
Additional Information
| Product Family | Industrial Storage |
Alternate & Equivalent Parts
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
Why does the DS2130 use pSLC mode and what endurance results?
Running YMTC 3D TLC as pseudo-SLC multiplies endurance to 360 TB TBW at 4 GB up to 800 TB at 32 GB, far beyond native TLC drives of similar capacity.
What temperature range and power does the DS2130 operate at?
It operates from -40°C to +85°C (storage -55°C to +95°C) while drawing under 1 W active and 0.6 W idle over its SATA 3.0 6Gb/s interface.
What environmental protections suit harsh industrial applications?
Anti-sulfuration and edge-fill treatment protect against corrosive atmospheres, with optional ruggedization, data recovery and soft destruction, plus RAID, SRAM ECC, 2K LDPC and power-loss protection.
What form factors and capacities can be ordered?
The DS2130 ships in mSATA and M.2 2242 form factors at 4 GB, 8 GB, 16 GB and 32 GB, certified to RoHS, WEEE, REACH, CE, FCC and UKCA-EMC.
