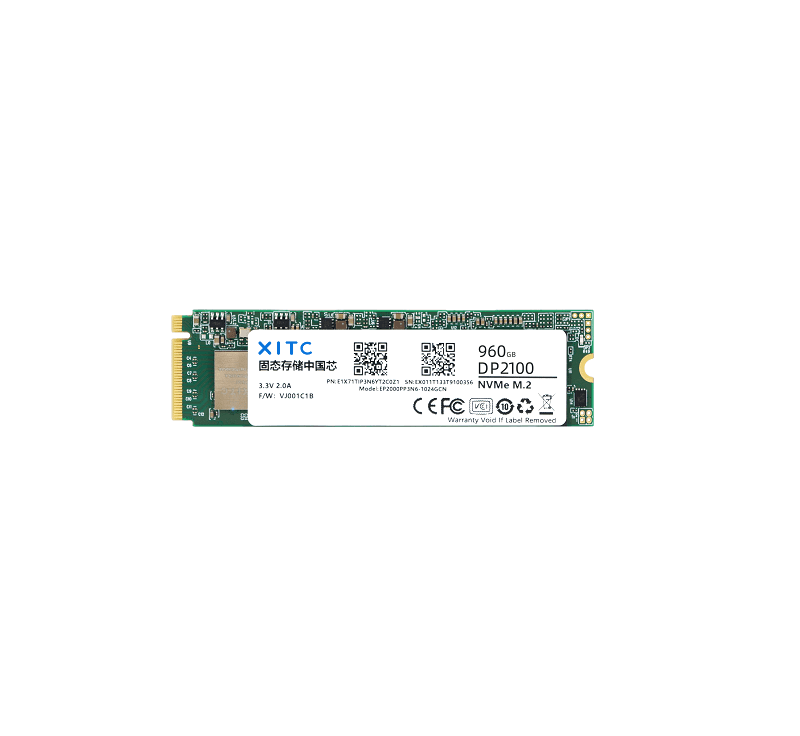

DP2100 XITCORP Solid State Drive (M.2 2280 NVMe) In Stock
Enterprise M.2 2280 NVMe SSD, PCIe 3.0 x4 NVMe 1.4, 240GB-1.92TB 3D TLC, up to 2,482/2,285 MB/s and 284K IOPS, >1 DWPD, TBW up to 4,368TB, 5-year warranty, for data-center boot drives.
- Manufacturer
- XITCORP
- Package
- M.2 2280 NVMe
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- Solid State Drive
- Temp Range
- 0.0°C to 70.0°C
- RoHS
- Compliant
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
Key Features
- PCIe 3.0 x4, NVMe 1.4 in M.2 2280
- 240GB to 1.92TB 3D TLC
- Up to 2,482/2,285 MB/s sequential
- Endurance >1 DWPD, TBW up to 4,368TB
- UBER ≤1E-17, MTBF ≥2M hours
- 5-year warranty
Applications
The DP2100 is designed as a system/boot drive for enterprise data centers, servers and storage arrays. Its low idle power (under 0.1W with APS 1.2) also suits dense server deployments; Kylin and UOS support covers Xinchuang platforms.
Specifications
| NAND Flash | 3D TLC |
| Interface | PCIe 3.0 x4, NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity Options | 240 GB / 480 GB / 960 GB / 1,920 GB |
| Sequential Read (max) | Up to 2,482 MB/s |
| Sequential Write (max) | Up to 2,285 MB/s |
| Random Read (max) | Up to 249,000 IOPS |
| Random Write (max) | Up to 284,000 IOPS |
| TBW | 546 TB (240 GB) up to 4,368 TB (1,920 GB) |
| DWPD | >1 |
| UBER | ≤1E-17 |
| MTBF | ≥2,000,000 hours |
| Power Consumption | Active <2.5 W, Idle <0.1 W (APS 1.2) |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Vibration (non-operating) | 20 G, 20–2,000 Hz |
| Shock (non-operating) | 1,500 G, 0.5 ms, 3 axis |
| Warranty | 5 years |
| Certifications | RoHS, WEEE, REACH, CE, UKCA |
| OS Compatibility | Windows 7/8.1/10, Linux, Kylin/UOS |
| Package | M.2 2280 NVMe |
Compliance & Regulatory
| RoHS Status | Compliant |
Additional Information
| Product Family | Enterprise SSD |
Alternate & Equivalent Parts
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What interface, speed and latency class does the DP2100 provide?
The DP2100 uses PCIe 3.0 x4 with NVMe 1.4, reaching 2,482 MB/s sequential read, 2,285 MB/s sequential write, and up to 249,000/284,000 random read/write IOPS in M.2 2280 format.
What endurance and reliability suit heavy-write enterprise applications?
It is rated above 1 drive write per day with TBW from 546 TB at 240 GB to 4,368 TB at 1,920 GB, an UBER of 1E-17, a 2-million-hour MTBF and a 5-year warranty.
What capacities are available and how much power does it draw?
Capacities of 240 GB, 480 GB, 960 GB and 1,920 GB draw under 2.5 W active and under 0.1 W idle with APS 1.2, easing thermals in dense server M.2 slots.
Which operating systems and platforms is the DP2100 compatible with?
It is validated on Windows 7/8.1/10, mainstream Linux distributions and Chinese operating systems including Kylin and UOS, making it deployable in both commercial servers and Xinchuang data-center builds.
