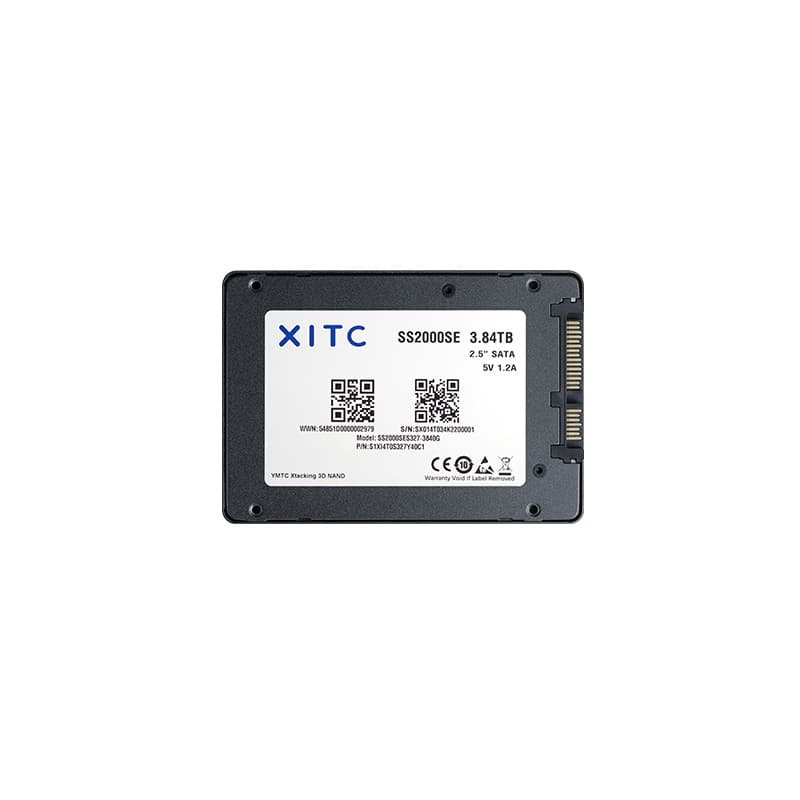

SS2000SE XITCORP Solid State Drive (2.5-inch 7mm SATA) In Stock
Enterprise 2.5-inch SATA 3.0 SSD on XT6120 controller with YMTC 3D TLC, 480GB-7.68TB, 560/520 MB/s, up to 98K IOPS steady-state, PLP and E2E protection, 1-3 DWPD, for servers and data centers.
- Manufacturer
- XITCORP
- Package
- 2.5-inch 7mm SATA
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- Solid State Drive
- Temp Range
- 0.0°C to 70.0°C
- RoHS
- Compliant
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
What are the key features of SS2000SE?
- 480GB to 7.68TB in 2.5-inch 7mm SATA
- XITCORP XT6120 controller with YMTC 3D TLC
- Up to 98K/65K steady-state random IOPS
- Power-loss protection (PLP) and E2E data path protection
- 1 DWPD read-intensive / 3 DWPD mixed-use endurance
- Optional AES-256 encryption
What is SS2000SE used for?
The SS2000SE serves as a boot and data drive for general-purpose servers, data centers and storage arrays. Its steady-state IOPS ratings and PLP make it suitable for sustained mixed workloads, and Kylin/UOS compatibility supports Chinese Xinchuang server platforms.
What are the specifications of SS2000SE?
| Controller | XITCORP XT6120 |
| NAND Flash | YMTC 3D TLC |
| Interface | SATA 3.0 (6Gb/s) |
| Form Factor | 2.5-inch, 7mm |
| Capacity Options | 480 GB / 960 GB / 1.92 TB / 3.84 TB / 7.68 TB |
| Sequential Read (max) | 560 MB/s |
| Sequential Write (max) | 520 MB/s (read-intensive) / 530 MB/s (mixed-use) |
| Random Read (steady state) | Up to 98,000 IOPS |
| Random Write (steady state) | Up to 65,000 IOPS (mixed-use) |
| DWPD (5 years) | 1 (read-intensive) / 3 (mixed-use) |
| MTBF | 2,000,000 hours |
| Power Consumption | Active <4.0 W, Idle <1.6 W |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Vibration (non-operating) | 3.13 Grms, 5–800 Hz |
| Shock (non-operating) | 1,000 G at 0.5 ms, 3 axis |
| Key Features | PLP, E2E, RAID+, ECC, thermal protection, online firmware upgrade, optional AES-256 |
| Certifications | RoHS, WEEE, REACH, CE |
| OS Compatibility | Windows 7/8.1/10, Linux, Kylin/UOS/NFSChina |
| Package | 2.5-inch 7mm SATA |
Compliance & Regulatory
| RoHS Status | Compliant |
Additional Information
| Product Family | Enterprise SSD |
What are equivalent replacements for SS2000SE?
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What interface and steady-state speed does the SS2000SE deliver?
The SS2000SE runs SATA 3.0 at 6Gb/s, sustaining 560 MB/s sequential read, 520–530 MB/s sequential write, and steady-state random performance up to 98,000 read and 65,000 write IOPS.
What capacities and endurance are available to order?
Capacities span 480 GB, 960 GB, 1.92 TB, 3.84 TB and 7.68 TB in a 2.5-inch 7mm case, rated 1 DWPD for read-intensive or 3 DWPD for mixed-use configurations over five years.
What power-loss and data protection suit enterprise applications?
It integrates capacitor-backed power-loss protection, end-to-end data path protection, RAID+ ECC, thermal protection and online firmware upgrade, with optional AES-256 encryption for secure server deployments.
What server and data-center use cases fit the SS2000SE?
It serves as boot and data storage for general servers, data centers and storage arrays, including Xinchuang platforms, since it is validated on Windows, mainstream Linux, Kylin, UOS and NFSChina operating systems.
