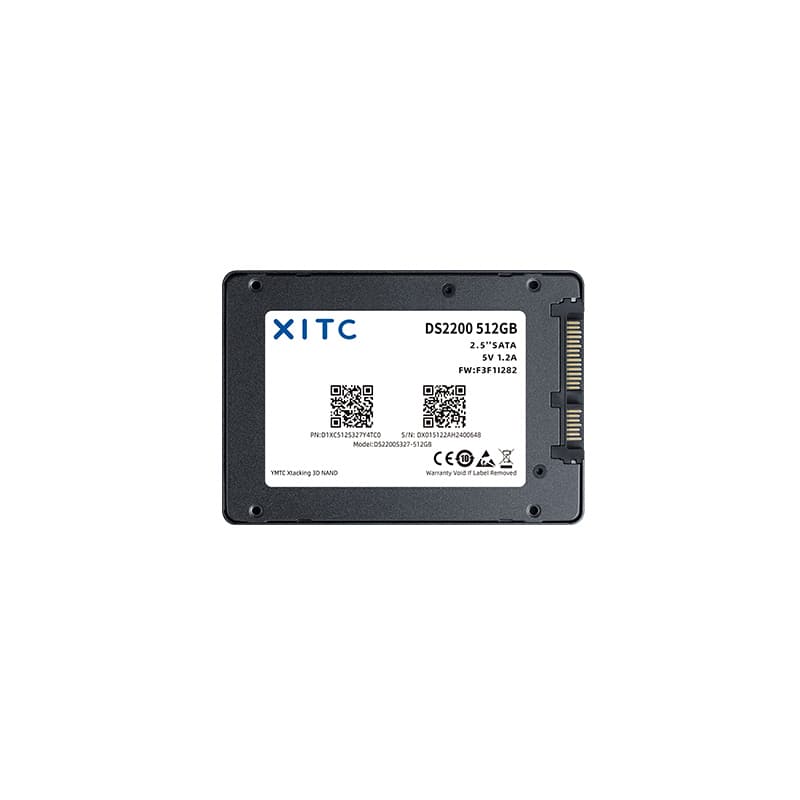

DS2200 XITCORP Solid State Drive (mSATA / M.2 2242 / M.2 2280 / 2.5-inch SATA) In Stock
Industrial-commercial SATA 3.0 SSD on XT6121 with YMTC 3D TLC, 128GB-1TB in four form factors, up to 560/440 MB/s, RAID and 2K LDPC, for desktops, thin terminals and embedded industrial PCs.
- Manufacturer
- XITCORP
- Package
- mSATA / M.2 2242 / M.2 2280 / 2.5-inch SATA
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- Solid State Drive
- Temp Range
- 0.0°C to 70.0°C
- RoHS
- Compliant
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
What are the key features of DS2200?
- 128 GB to 1 TB across four form factors
- XT6121 controller with YMTC 3D TLC
- Up to 560/440 MB/s, 60K/62K IOPS
- RAID, SRAM ECC and 2K LDPC protection
- Active power under 1.3 W
- RoHS, WEEE, CE, REACH, CB, FCC certified
What is DS2200 used for?
The DS2200 fits desktops, thin/fat terminals, embedded industrial computers and industrial tablets — cost-sensitive industrial client systems that still need industrial-grade controllers and data protection.
What are the specifications of DS2200?
| Controller | XITCORP XT6121 |
| NAND Flash | YMTC 3D TLC |
| Interface | SATA 3.0 (6Gb/s), backward compatible with 3Gb/s and 1.5Gb/s |
| Form Factor | mSATA; M.2 2242; M.2 2280; 2.5-inch |
| Capacity Options | 128 GB / 256 GB / 512 GB / 1 TB |
| Sequential Read (max) | Up to 560 MB/s |
| Sequential Write (max) | Up to 440 MB/s |
| Random Read (max) | Up to 60,000 IOPS |
| Random Write (max) | Up to 62,000 IOPS |
| TBW | 150 TB (128 GB) up to 1,000 TB (1 TB) |
| MTBF | 2,000,000 hours |
| Power Consumption | Active <1.3 W, Idle <0.6 W |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Vibration (non-operating) | 15 G, 10–2,000 Hz |
| Shock (non-operating) | 1,000 G at 0.5 ms, 3 axis |
| Key Features | RAID, SRAM ECC, 2K LDPC, TLC direct write, data recovery support |
| Certifications | RoHS, WEEE, CE, REACH, CB, FCC |
| OS Compatibility | Windows 7/8.1/10, Linux, Kylin/UOS |
| Package | mSATA / M.2 2242 / M.2 2280 / 2.5-inch SATA |
Compliance & Regulatory
| RoHS Status | Compliant |
Additional Information
| Product Family | Industrial Storage |
What are equivalent replacements for DS2200?
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What interface performance does the DS2200 deliver?
Over SATA 3.0 6Gb/s the DS2200 reaches up to 560 MB/s sequential read, 440 MB/s sequential write, and random performance up to 60,000 read and 62,000 write IOPS.
What form factors and capacities are available to order?
It ships in mSATA, M.2 2242, M.2 2280 and 2.5-inch form factors at 128 GB, 256 GB, 512 GB and 1 TB with TBW from 150 TB to 1,000 TB.
What power and temperature envelope suits industrial client applications?
The drive draws under 1.3 W active and 0.6 W idle across a 0°C to +70°C operating range, backed by a 2-million-hour MTBF and YMTC 3D TLC NAND.
Where is the DS2200 typically designed in?
It fits desktops, thin and fat client terminals, embedded industrial computers and industrial tablets — cost-sensitive industrial client systems that still require the XT6121 controller's RAID, SRAM ECC and 2K LDPC protection.
