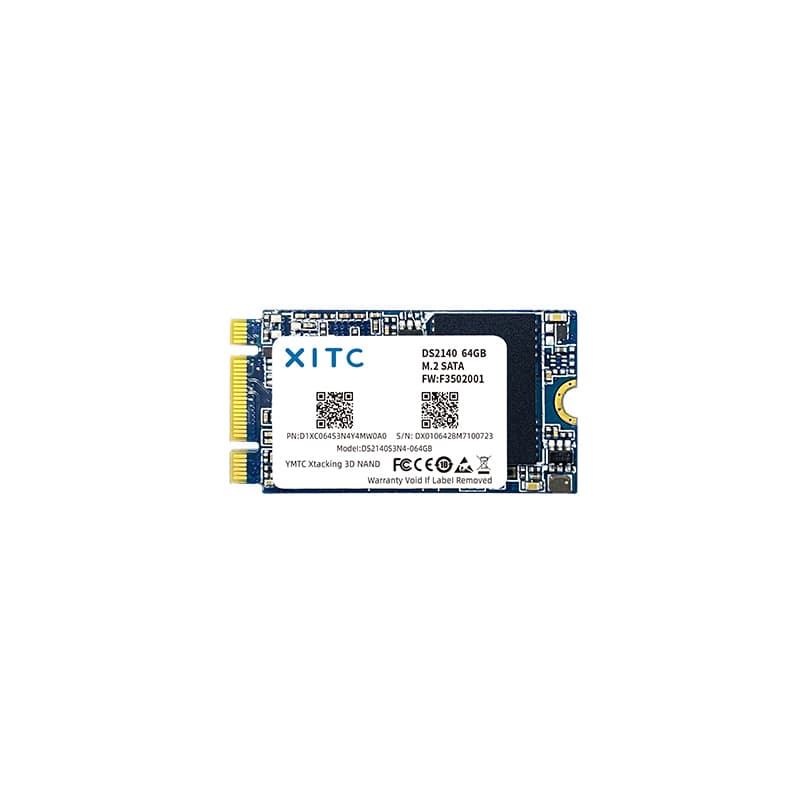

DS2140 XITCORP Solid State Drive (mSATA / M.2 2242 / M.2 2280 / 2.5-inch SATA) In Stock
Wide-temperature MLC industrial SATA SSD on XT6121, 8GB-1TB in four form factors, -40 to +85C, anti-sulfuration, PLP, for network security, relay protection and industrial automation.
- Manufacturer
- XITCORP
- Package
- mSATA / M.2 2242 / M.2 2280 / 2.5-inch SATA
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- Solid State Drive
- Temp Range
- -40.0°C to 85.0°C
- RoHS
- Compliant
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
What are the key features of DS2140?
- YMTC MLC NAND for industrial endurance
- 8 GB to 1 TB across four form factors
- -40°C to +85°C operating range
- Anti-sulfuration and edge-fill protection
- RAID, SRAM ECC, 2K LDPC, PLP
- Optional data recovery and soft destruction
What is DS2140 used for?
The DS2140 serves network security equipment, power-grid relay protection devices, industrial automation control systems, industrial edge-computing boxes and portable outdoor equipment where MLC endurance and wide-temperature reliability are mandatory.
What are the specifications of DS2140?
| Controller | XITCORP XT6121 |
| NAND Flash | YMTC MLC |
| Interface | SATA 3.0 (6Gb/s), backward compatible with 3Gb/s and 1.5Gb/s |
| Form Factor | mSATA; M.2 2242; M.2 2280; 2.5-inch |
| Capacity Options | 8 GB / 16 GB / 32 GB / 64 GB / 128 GB / 256 GB / 512 GB / 1 TB |
| Sequential Read (max) | Up to 550 MB/s |
| Sequential Write (max) | Up to 320 MB/s |
| Random Read (max) | Up to 40,000 IOPS |
| Random Write (max) | Up to 45,300 IOPS |
| TBW | 50 TB (8 GB) up to 1,920 TB (1 TB) |
| MTBF | 2,000,000 hours |
| Power Consumption | Active <1.9 W, Idle <0.7 W |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +95°C |
| Vibration (non-operating) | 20 G, 7–2,000 Hz |
| Shock (non-operating) | 1,500 G at 0.5 ms, 3 axis |
| Key Features | RAID, SRAM ECC, 2K LDPC, PLP; anti-sulfuration and edge-fill; data recovery, soft destruction, ruggedization (customizable) |
| Certifications | RoHS, WEEE, CE, REACH, FCC |
| OS Compatibility | Windows 7/8.1/10, Linux, Kylin/UOS |
| Package | mSATA / M.2 2242 / M.2 2280 / 2.5-inch SATA |
Compliance & Regulatory
| RoHS Status | Compliant |
Additional Information
| Product Family | Industrial Storage |
What are equivalent replacements for DS2140?
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
Why does the DS2140 use MLC NAND for industrial applications?
YMTC MLC provides higher intrinsic endurance and wider temperature tolerance than TLC, supporting -40°C to +85°C operation and TBW from 50 TB at 8 GB to 1,920 TB at 1 TB.
What form factors, capacities and interface are available?
It spans mSATA, M.2 2242, M.2 2280 and 2.5-inch form factors from 8 GB to 1 TB over SATA 3.0 6Gb/s, backward compatible with 3Gb/s and 1.5Gb/s.
What speed does the DS2140 reach?
Sequential performance reaches 550 MB/s read and 320 MB/s write, with random performance up to 40,000 read and 45,300 write IOPS depending on capacity.
What customization options exist for demanding designs?
Data recovery, soft destruction and three-proofing ruggedization can be customized, on top of standard anti-sulfuration treatment, edge filling, RAID, SRAM ECC, 2K LDPC and power-loss protection.
