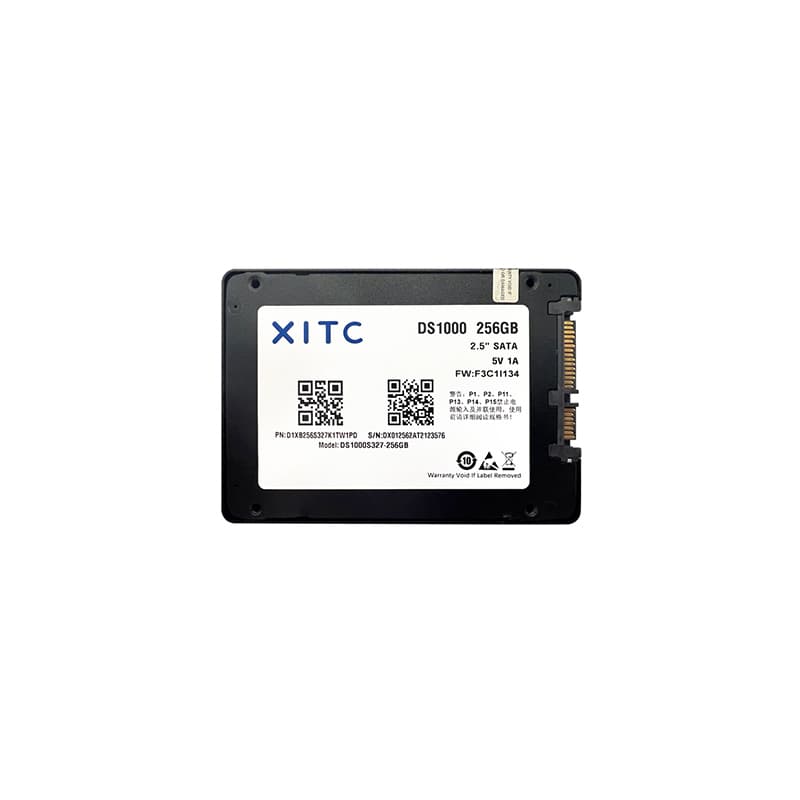

DS1000 XITCORP Solid State Drive (mSATA / M.2 2280 / 2.5-inch SATA) In Stock
Wide-temperature industrial SATA 3.0 SSD on XT6110 controller, KIOXIA TLC, 64GB-4TB in mSATA/M.2 2280/2.5-inch, -40 to +85C, PLP and one-click destruction, for rail transit and industrial control.
- Manufacturer
- XITCORP
- Package
- mSATA / M.2 2280 / 2.5-inch SATA
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- Solid State Drive
- Temp Range
- -40.0°C to 85.0°C
- RoHS
- Compliant
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
What are the key features of DS1000?
- -40°C to +85°C operating range
- mSATA, M.2 2280 and 2.5-inch options, 64 GB to 4 TB
- XT6110 controller with KIOXIA TLC
- Steady-state TLC direct write
- PLP and one-click data destruction
- TBW up to 2,400 TB, MTBF 2M hours
What is DS1000 used for?
The DS1000 is engineered for rail transit, video surveillance, industrial control and other pure wide-temperature industrial applications, including security-encrypted special-purpose storage equipment. Its destruction and recovery options address defense-adjacent and data-sensitive deployments.
What are the specifications of DS1000?
| Controller | XITCORP XT6110 |
| NAND Flash | KIOXIA gTLC |
| Interface | SATA 3.0 (6Gb/s), backward compatible with 3Gb/s and 1.5Gb/s |
| Form Factor | mSATA; M.2 2280; 2.5-inch |
| Capacity Options | 64 GB / 128 GB / 256 GB / 512 GB / 1 TB / 2 TB / 4 TB |
| Sequential Read (max) | Up to 560 MB/s |
| Sequential Write (max) | Up to 480 MB/s |
| Random Read (max) | Up to 92,000 IOPS |
| Random Write (max) | Up to 79,000 IOPS |
| TBW | 50 TB (64 GB) up to 2,400 TB (4 TB) |
| MTBF | 2,000,000 hours |
| Power Consumption | Active <2.3 W, Idle <0.7 W |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +95°C |
| Vibration (non-operating) | 20 G, 7–2,000 Hz |
| Shock (non-operating) | 1,500 G, 0.5 ms, 3 axis |
| Key Features | Steady-state TLC direct write, PLP, one-click destruction, data recovery (customizable) |
| Certifications | RoHS, WEEE |
| OS Compatibility | Windows 7/8.1/10, Linux, Kylin/UOS |
| Package | mSATA / M.2 2280 / 2.5-inch SATA |
Compliance & Regulatory
| RoHS Status | Compliant |
Additional Information
| Product Family | Industrial Storage |
What are equivalent replacements for DS1000?
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What temperature range and interface does the DS1000 support?
The DS1000 operates from -40°C to +85°C (storage -55°C to +95°C) over SATA 3.0 6Gb/s, backward compatible with 3Gb/s and 1.5Gb/s links, sustaining up to 560/480 MB/s.
What form factors, capacities and endurance can be ordered?
It ships in mSATA, M.2 2280 and 2.5-inch from 64 GB to 4 TB, with TBW ratings from 50 TB up to 2,400 TB and a 2-million-hour MTBF.
What security features suit data-sensitive industrial applications?
One-click data destruction and customizable data-recovery support come standard alongside power-loss protection and steady-state TLC direct write on the XT6110 controller with KIOXIA TLC NAND.
Which industrial use cases is the DS1000 designed for?
XITCORP targets rail transit, video surveillance, industrial control and wide-temperature industrial equipment, including security-encrypted special-purpose storage where destruction and recovery options are procurement requirements.
