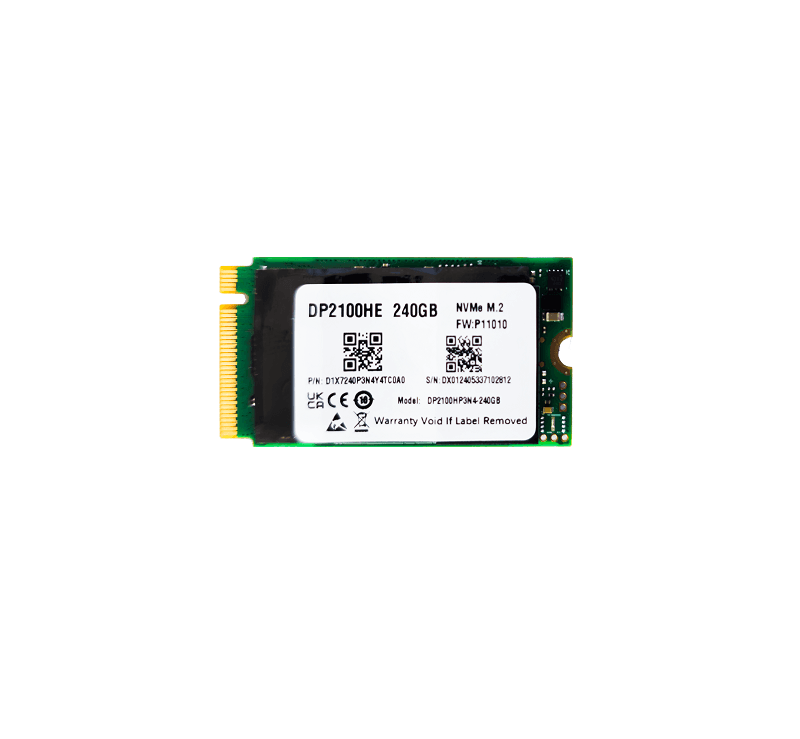

DP2100 HE XITCORP Solid State Drive (M.2 2242 NVMe) In Stock
Compact enterprise M.2 2242 NVMe SSD, PCIe 3.0 x2 NVMe 1.4, 64GB/240GB 3D TLC, up to 1,750/1,620 MB/s, 210K random write IOPS, >1 DWPD, 5-year warranty, for server boot drives.
- Manufacturer
- XITCORP
- Package
- M.2 2242 NVMe
- Lifecycle
- PRODUCTION
- Datasheet
- N/A
- Category
- Solid State Drive
- Temp Range
- 0.0°C to 70.0°C
- RoHS
- Compliant
- Lead Time
- 3–7 business days
- Shipping
- DHL Express · Worldwide
What are the key features of DP2100 HE?
- Short M.2 2242 form factor for dense boot drives
- PCIe 3.0 x2 link, NVMe 1.4, Gen3 x4 compatible
- 64 GB and 240 GB 3D TLC options
- Up to 1,750/1,620 MB/s and 210K write IOPS
- Endurance >1 DWPD, TBW up to 546 TB
- 5-year warranty
What is DP2100 HE used for?
The DP2100 HE is a boot-drive-class SSD for enterprise data centers, servers and storage arrays where M.2 2242 slots are used, such as OS drives on server motherboards and boards with limited space.
What are the specifications of DP2100 HE?
| NAND Flash | 3D TLC |
| Interface | PCIe 3.0 x2 (compatible with Gen3 x4), NVMe 1.4 |
| Form Factor | M.2 2242 |
| Capacity Options | 64 GB / 240 GB |
| Sequential Read (max) | 853 MB/s (64 GB) / 1,750 MB/s (240 GB) |
| Sequential Write (max) | 570 MB/s (64 GB) / 1,620 MB/s (240 GB) |
| Random Read (max) | 30,000 IOPS (64 GB) / 59,000 IOPS (240 GB) |
| Random Write (max) | 128,000 IOPS (64 GB) / 210,000 IOPS (240 GB) |
| TBW | 145 TB (64 GB) / 546 TB (240 GB) |
| Read/Write Latency (typical) | 120–132 µs read, 24–280 µs write |
| DWPD | >1 |
| UBER | ≤1E-17 |
| MTBF | ≥2,000,000 hours |
| Power Consumption | Active <1.5–2.0 W, Idle <0.1 W |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Vibration (non-operating) | 20 G, 20–2,000 Hz |
| Shock (non-operating) | 1,000 G at 0.5 ms, 3 axis |
| Warranty | 5 years |
| OS Compatibility | Windows 7/8.1/10, Linux, Kylin/UOS/NFSChina |
| Package | M.2 2242 NVMe |
Compliance & Regulatory
| RoHS Status | Compliant |
Additional Information
| Product Family | Enterprise SSD |
What are equivalent replacements for DP2100 HE?
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What form factor and interface does the DP2100 HE use?
The DP2100 HE packs enterprise NVMe storage into a short M.2 2242 card on a PCIe 3.0 x2 link (backward compatible with Gen3 x4 slots) running the NVMe 1.4 protocol.
What speed and latency does the DP2100 HE achieve?
The 240 GB model reaches 1,750 MB/s read, 1,620 MB/s write and 210,000 random write IOPS, with typical latencies of 120–132 µs on reads and as low as 24 µs on writes.
What capacities and endurance are available for boot-drive applications?
It comes in 64 GB with 145 TB TBW and 240 GB with 546 TB TBW, both rated above 1 DWPD with a 1E-17 UBER, a 2-million-hour MTBF and a 5-year warranty.
Where is the DP2100 HE typically used or designed in?
It is designed as an OS and boot drive for enterprise servers and storage arrays whose motherboards expose M.2 2242 sockets, where full-length 2280 enterprise drives physically do not fit.
