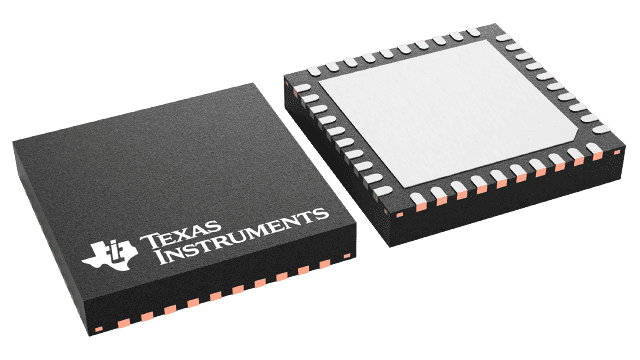

ADS9811
8-channel, 18-bit, 1MSPS simultaneous sampling ADC with integrated analog front end
Precision ADCs
- Manufacturer
- Texas Instruments
- Package
- VQFN
- Lifecycle
- ACTIVE
- Datasheet
- 📄 Available
- Category
- Precision ADCs
- Price
- From $28.75
Specifications
| Operating temperature range | -40 to 125°C |
| Architecture | SAR |
| Input voltage range | -12 to 12V |
| Sample rate | max 1000ksps |
| Rating | Catalog |
| Analog supply voltage | 4.75 to 5.25V |
| Interface type | Enhanced SPI, Serial CMOS |
| Input type | Differential, Single-ended |
| Power consumption | 160mW |
| Reference mode | External, Internal |
| SNR | 92.3dB |
| Multichannel configuration | Simultaneous Sampling |
| Features | Over-Voltage Protection, PGA |
| Digital supply | 1.75 to 1.85V |
| Resolution | 18Bits |
| Number of input channels | 8 |
| Package | VQFN |
Alternate & Equivalent Parts
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What is the price of ADS9811?
ADS9811 is priced from $28.7500 to $28.7500 USD depending on quantity. Submit an RFQ on FindMyChip for the best current pricing from authorized China distributors.
Is ADS9811 in stock?
ADS9811 is currently available at FindMyChip. We maintain stock from authorized distributors and ship worldwide with typical 3-7 business day lead time.
Where can I buy ADS9811?
You can buy ADS9811 from FindMyChip, a B2B electronic component platform sourcing from China distributors. We offer competitive pricing and low MOQ for ADS9811 from Texas Instruments.
What is the datasheet for ADS9811?
The official ADS9811 datasheet from Texas Instruments contains full specifications including pin configuration, electrical characteristics, and application notes. Download it directly from the datasheet section above.
What package does ADS9811 come in?
ADS9811 is available in VQFN packaging. See the package diagram and pinout above for detailed dimensional information.
