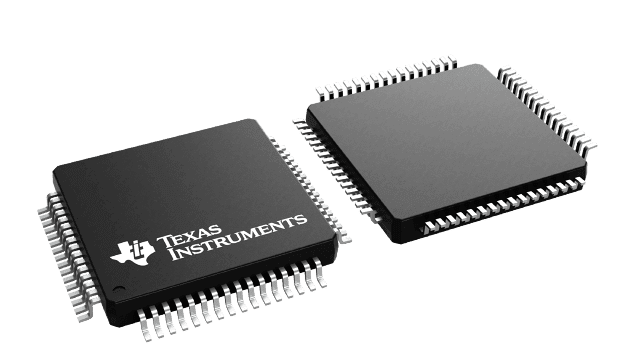

ADS8686S
16-channel 16-bit 1-MSPS dual simultaneous-sampling ADC with integrated analog front end (AFE)
Precision op amps (Vos<1mV)
- Manufacturer
- Texas Instruments
- Package
- LQFP
- Lifecycle
- ACTIVE
- Datasheet
- 📄 Available
- Category
- Precision op amps (Vos<1mV)
- Price
- $12.17 – $15.99
Specifications
| Operating temperature range | -40 to 125°C |
| Architecture | SAR |
| Sample rate | max 1000ksps |
| Input voltage range | -10 to 10V |
| Rating | Catalog |
| Analog supply voltage | 4.75 to 5.25V |
| Interface type | Byte-Wide, Parallel, SPI |
| Input type | Single-ended |
| Power consumption | 296.98mW |
| Reference mode | External, Internal |
| SNR | 91.9dB |
| Multichannel configuration | Multiplexed, Simultaneous Sampling |
| Features | Over-Voltage Protection, PGA |
| Digital supply | 1.71 to 5.25V |
| Resolution | 16Bits |
| Number of input channels | 16 |
| Package | LQFP |
Alternate & Equivalent Parts
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What is the price of ADS8686S?
ADS8686S is priced from $12.1670 to $15.9920 USD depending on quantity. Submit an RFQ on FindMyChip for the best current pricing from authorized China distributors.
Is ADS8686S in stock?
ADS8686S is currently available at FindMyChip. We maintain stock from authorized distributors and ship worldwide with typical 3-7 business day lead time.
Where can I buy ADS8686S?
You can buy ADS8686S from FindMyChip, a B2B electronic component platform sourcing from China distributors. We offer competitive pricing and low MOQ for ADS8686S from Texas Instruments.
What is the datasheet for ADS8686S?
The official ADS8686S datasheet from Texas Instruments contains full specifications including pin configuration, electrical characteristics, and application notes. Download it directly from the datasheet section above.
What package does ADS8686S come in?
ADS8686S is available in LQFP packaging. See the package diagram and pinout above for detailed dimensional information.
