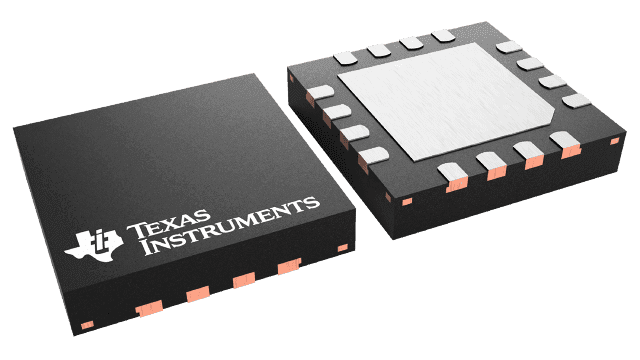

ADS8681
16-bit, 1MSPS 1-ch SAR ADC with programmable (±12V, ±10V, ±6V, ±5V, ±2.5V) input ranges on 5V supply
Precision op amps (Vos<1mV)
- Manufacturer
- Texas Instruments
- Package
- TSSOP
- Lifecycle
- ACTIVE
- Datasheet
- 📄 Available
- Category
- Precision op amps (Vos<1mV)
- Price
- $4.22 – $5.70
Specifications
| Operating temperature range | -40 to 125°C |
| Architecture | SAR |
| Input voltage range | -12.288 to 12.288V |
| Sample rate | max 1000ksps |
| Rating | Catalog |
| Analog supply voltage | 4.75 to 5.25V |
| Interface type | Enhanced SPI, SPI |
| Input type | Single-ended |
| Power consumption | 42mW |
| Reference mode | External, Internal |
| SNR | 90.5dB |
| Features | Oscillator, Over-Voltage Protection, PGA |
| Digital supply | 1.65 to 5.25V |
| Resolution | 16Bits |
| Number of input channels | 1 |
| Package | TSSOP |
Alternate & Equivalent Parts
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What is the price of ADS8681?
ADS8681 is priced from $4.2190 to $5.6960 USD depending on quantity. Submit an RFQ on FindMyChip for the best current pricing from authorized China distributors.
Is ADS8681 in stock?
ADS8681 is currently available at FindMyChip. We maintain stock from authorized distributors and ship worldwide with typical 3-7 business day lead time.
Where can I buy ADS8681?
You can buy ADS8681 from FindMyChip, a B2B electronic component platform sourcing from China distributors. We offer competitive pricing and low MOQ for ADS8681 from Texas Instruments.
What is the datasheet for ADS8681?
The official ADS8681 datasheet from Texas Instruments contains full specifications including pin configuration, electrical characteristics, and application notes. Download it directly from the datasheet section above.
What package does ADS8681 come in?
ADS8681 is available in TSSOP packaging. See the package diagram and pinout above for detailed dimensional information.
