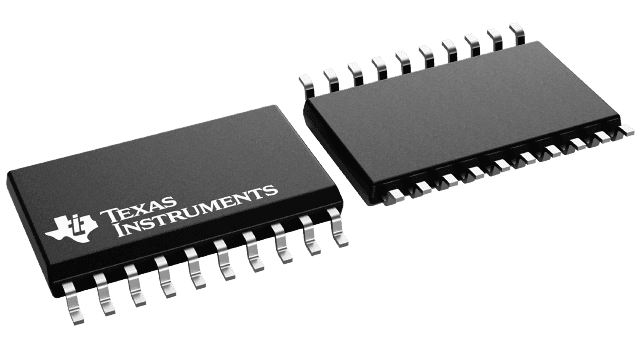

ADS801
12-Bit, 25 MSPS ADC SE/Diff inputs. Internal References, pin compatible to ADS800/2
High-speed ADCs (≥10 MSPS)
- Manufacturer
- Texas Instruments
- Package
- SOIC
- Lifecycle
- OBSOLETE
- Datasheet
- 📄 Available
- Category
- High-speed ADCs (≥10 MSPS)
- Price
- From $22.37
Specifications
| Operating temperature range | -40 to 85°C |
| Architecture | Pipeline |
| Sample rate | max 25Msps |
| Rating | Catalog |
| SFDR | 77dB |
| Interface type | Parallel CMOS |
| Analog input BW | 65MHz |
| Power consumption | 270mW |
| SNR | 66dB |
| Input buffer | No |
| Peak-to-peak input voltage range | 2V |
| Features | Low Power |
| ENOB | 10.3Bits |
| Resolution | 12Bits |
| Number of input channels | 1 |
| Package | SOIC |
Alternate & Equivalent Parts
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What is the price of ADS801?
ADS801 is priced from $22.3730 to $22.3730 USD depending on quantity. Submit an RFQ on FindMyChip for the best current pricing from authorized China distributors.
Is ADS801 in stock?
ADS801 is currently available at FindMyChip. We maintain stock from authorized distributors and ship worldwide with typical 3-7 business day lead time.
Where can I buy ADS801?
You can buy ADS801 from FindMyChip, a B2B electronic component platform sourcing from China distributors. We offer competitive pricing and low MOQ for ADS801 from Texas Instruments.
What is the datasheet for ADS801?
The official ADS801 datasheet from Texas Instruments contains full specifications including pin configuration, electrical characteristics, and application notes. Download it directly from the datasheet section above.
What package does ADS801 come in?
ADS801 is available in SOIC packaging. See the package diagram and pinout above for detailed dimensional information.
