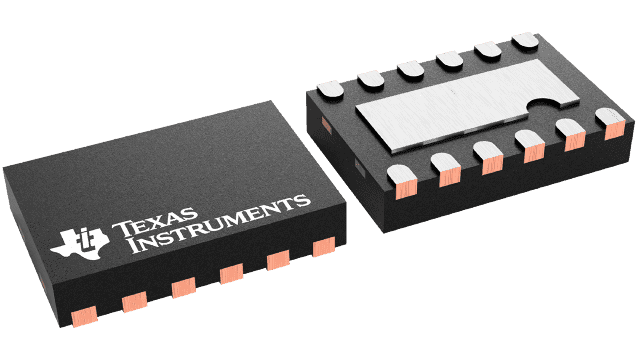

ADS7946
14-Bit, 2MSPS, Dual-Channel, Unipolar, Pseudo-Differential, u-Power SAR ADC
Precision op amps (Vos<1mV)
- Manufacturer
- Texas Instruments
- Package
- WQFN
- Lifecycle
- ACTIVE
- Datasheet
- 📄 Available
- Category
- Precision op amps (Vos<1mV)
- Price
- $4.62 – $5.54
Specifications
| Operating temperature range | -40 to 125°C |
| Architecture | SAR |
| Sample rate | max 2000ksps |
| Input voltage range | 0 to 5.25V |
| Rating | Catalog |
| Analog supply voltage | 2.7 to 5.25V |
| Interface type | SPI |
| Input type | Pseudo-Differential, Single-ended |
| Power consumption | 10.5mW |
| Reference mode | External |
| SNR | 82dB |
| Multichannel configuration | Multiplexed |
| Features | Small Size |
| Digital supply | 1.65 to 5.25V |
| Resolution | 14Bits |
| Number of input channels | 2 |
| Package | WQFN |
Alternate & Equivalent Parts
No known alternates. Submit an RFQ and our team can suggest alternatives.
Frequently Asked Questions
What is the price of ADS7946?
ADS7946 is priced from $4.6200 to $5.5440 USD depending on quantity. Submit an RFQ on FindMyChip for the best current pricing from authorized China distributors.
Is ADS7946 in stock?
ADS7946 is currently available at FindMyChip. We maintain stock from authorized distributors and ship worldwide with typical 3-7 business day lead time.
Where can I buy ADS7946?
You can buy ADS7946 from FindMyChip, a B2B electronic component platform sourcing from China distributors. We offer competitive pricing and low MOQ for ADS7946 from Texas Instruments.
What is the datasheet for ADS7946?
The official ADS7946 datasheet from Texas Instruments contains full specifications including pin configuration, electrical characteristics, and application notes. Download it directly from the datasheet section above.
What package does ADS7946 come in?
ADS7946 is available in WQFN packaging. See the package diagram and pinout above for detailed dimensional information.
